Gaskets

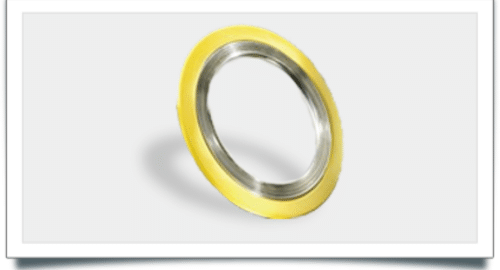

Spiral Wound
Spiral wound gaskets provide flexible, reliable sealing for fluctuating temperature and pressure conditions. We stock Thermiculite 835 and various Flexitallic styles for precision sealing in flanged joints, heat exchangers, and boiler applications—resisting nearly all corrosive and toxic elements.

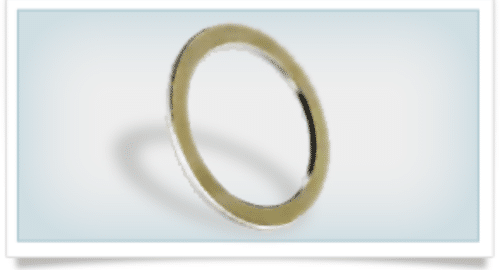

Flexpro (Kammprofile)
The Flexpro Kammprofile gasket combines the compressibility of a sheet gasket with the bolt tightness of a spiral wound, plus the easy handling and buckling resistance of solid metal. It resists flange rotation, bolt stress relaxation, and creep—even under extreme pressure and temperature changes.
|
High-temperature facing material for kammprofile gaskets, suitable for use from cryogenic temperatures up to 1800ºF (982ºC) and compatible with Class 150 to 2500 applications. |
|
The Flexpro gasket delivers excellent compressibility and recovery, maintaining joint tightness despite pressure and temperature fluctuations, flange rotation, and bolt stress relaxation. It’s suitable for applications ranging from vacuum to extremely high pressure. |

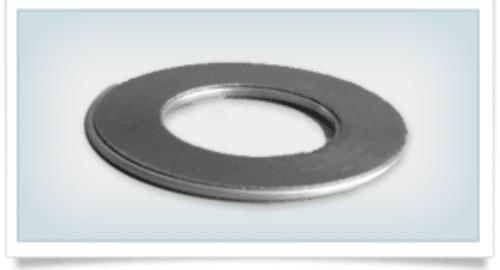

Metal Jacket Gaskets
|
High-temperature facing material for kammprofile gaskets, suitable for use from cryogenic temperatures up to 1800ºF (982ºC) and compatible with Class 150 to 2500 applications. |
|
The Flexpro gasket offers excellent compressibility and recovery, maintaining joint tightness despite pressure and temperature changes, flange rotation, and bolt stress relaxation. It’s suitable for applications ranging from vacuum to extremely high pressure. |

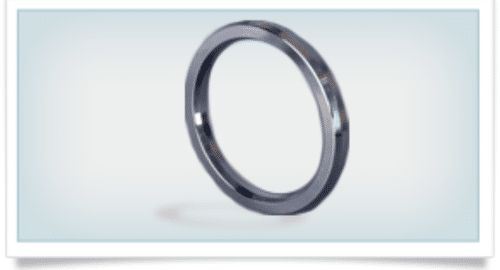

Ring Type Joints (RTJ)
|
Style R ring type joints are made to API 6A and ASME B16.20 standards for API 6B and ASME B16.5 flanges, available in both oval and octagonal shapes. Both fit modern flat bottom grooves, but only the oval style suits old round bottom grooves. Designed to seal pressures up to 6,250 psi (ASME B16.5) and 5,000 psi (API 6A), they ensure reliable performance in high-pressure applications. |
|
Style BX ring type joints are manufactured to API 6A standards and feature a pressure passage hole for equalization across sealing faces. They achieve metal-to-metal contact upon assembly, are only compatible with API 6BX flanges, and are designed to seal pressures up to 20,000 psi. |
|
Style RX ring type joints are manufactured to API 6A and ASME B16.20 standards for API 6B and ASME B16.5 flanges, available in both oval and octagonal shapes. Both fit modern flat bottom grooves, but only the oval style fits old round bottom grooves. They are designed to seal pressures up to 6,250 psi (ASME B16.5) and 5,000 psi (API 6A). |

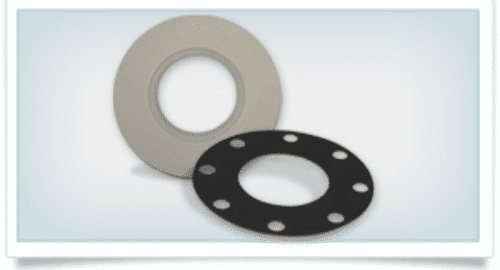

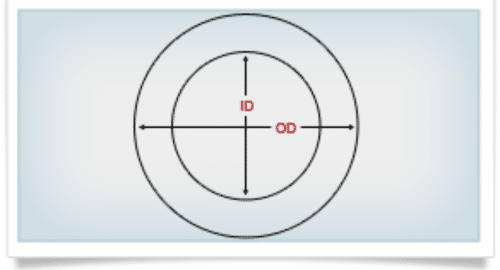

Non-Metallic Cut Gaskets

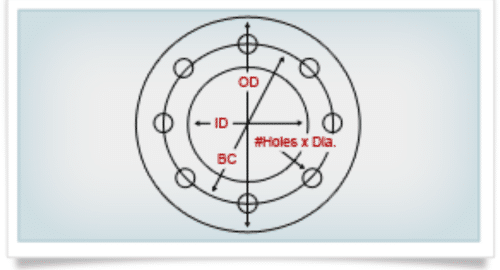

Available in both standard ring type and full face designs, these flange gaskets are offered in a complete range of low and high pressure standard sizes. They deliver reliable sealing performance for a variety of flange connections in demanding industrial applications.

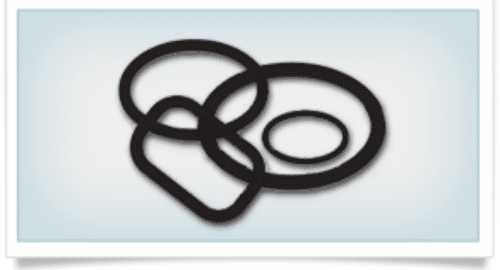

Boiler Gaskets
Arcy Manufacturing offers a wide selection of boiler gaskets in various materials and sizes, available upon request. We stock “E” elliptical, “OB” obround, “P” pear-shaped, and “R” round gaskets for handhole, manway, and boiler door applications, including Topog-E, BLUE-MAX, and spiral wound types.

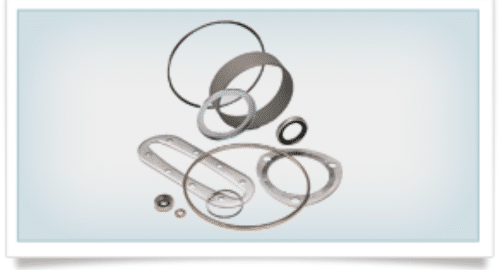

Specialty Gaskets
We offer a wide range of specialty gaskets in various sizes and materials, available upon request. Our inventory includes steel, copper, aluminum, and corrugated gaskets, as well as phenolic, condenser rings, grommets, lantern rings, sanitary gaskets, stress savers, Taskline gaskets, Teflon/bronze seals, Klozure seals, shims, Parker Flex seals, packing rings, bushings, and bellows—providing reliable solutions for specialized sealing needs.
Special size and material available upon request.

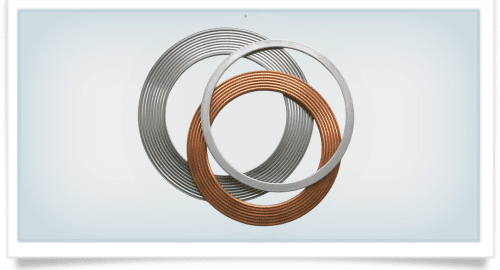

Gasket Cutting Services
Materials and sizes are available upon request. We offer a full range of gasket cutting services, including die cutting, custom fabrication, stripping and slitting, lathe cutting, kitting, assembly, vulcanizing, and metal fabrication to meet your specific needs. Contact us today to discuss your specialty gasket needs or request a custom solution.
